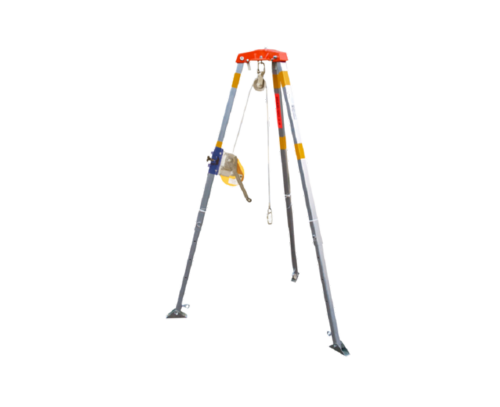

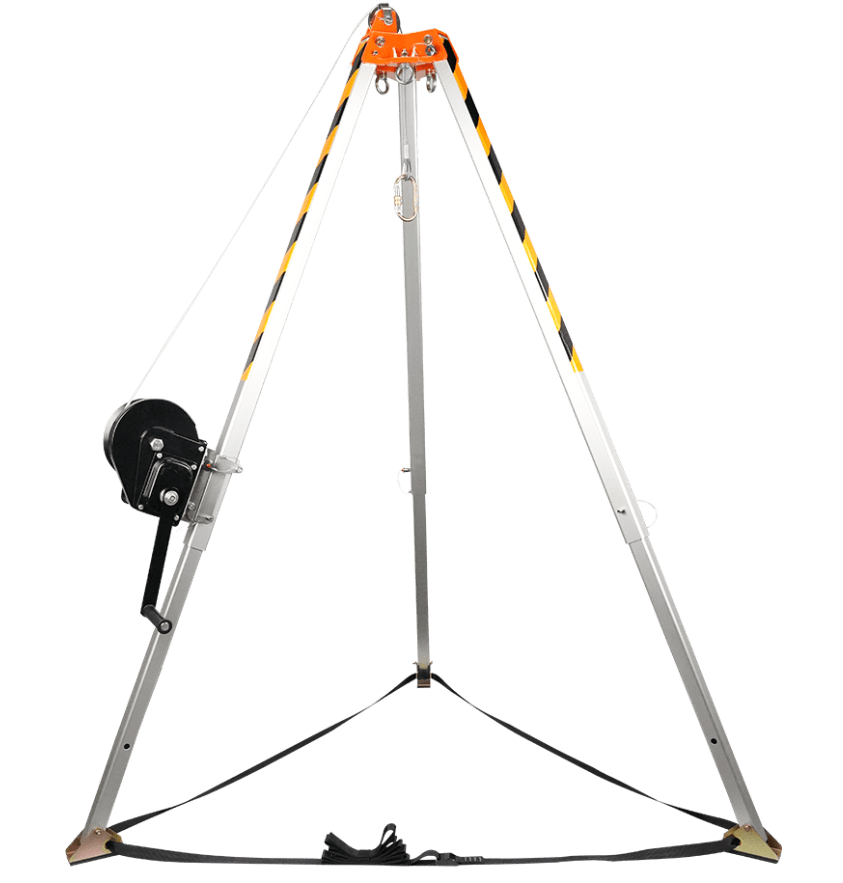

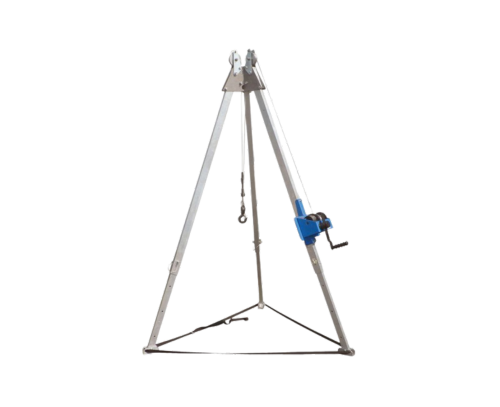

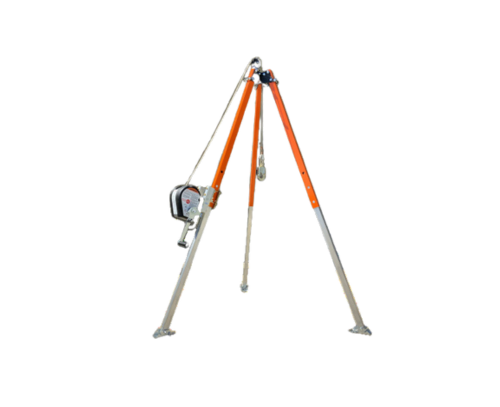

Tripod and winch Set

Tripod Winch Set

Tripod and Winch
Tripod and Winch

Key Features

Tripod Winch Set: Reliable Confined Space Entry and Rescue Solutions

Mobile rescue tripod, suitable for
lifting heavy objects, fixing and
rescue use;

Equipped with adjustable locking
legs and three anchor connections,
economical for many restricted
spaces, fall environment and rescue
environment;

Aluminum tripod, corrosion
resistant coating, high strength;

2-stage independent adjustable
telescopic leg, fixed with stainless
steel rod, with collapsible rubber
sole and sharp edge at the bottom.
Independent adjustable legs for
uneven surfaces.

Two built-in pulleys and top
structure, excellent performance
and reliability;

Steel double action terminal
connection lock;

The tripod configuration supports
the safety chain to prevent the risk
of falling;

With nylon portable equipment
bag; Easy to reuse and carry

Key Features

Tripod Winch Set: Reliable Confined Space Entry and Rescue Solutions

DESIGN

Flexible, light weight, practical and comfortable

WIRE ROPE

GALVANIZED WIRE ROPE

Aluminum Tripod Corrosion resistant coating

MATERIAL

Improvised braking system with 500 kg Max Load capacity
WINCH DESIGN
TRIPOD DESIGN
2-stage independent adjustable telescopic leg, fixed with stainless steel rod, with collapsible rubber sole and sharp edge at the bottom. Independent adjustable legs for uneven surfaces
PULLEY
Two built-in pulleys and top structure, excellent performance and reliability

CHAIN

The tripod configuration supports the safety chain to prevent the risk of
falling

USAGE
Equipped with adjustable locking legs and three anchor connections, economical for many restricted spaces, fall environment and rescue environment
AVERAGE WEIGHT
13.5 kgs
CERTIFICATION
EN 795:2012 and EN 1496
Tripod and Winch

Tripod Winch Set

Versatile Anchor Points

Multiple anchor points for attachment of winches, pulleys, or lifelines to adapt to various safety applications.

Compact & Portable Design

Collapsible and compact for easy transport and storage, making it suitable for multiple work sites.

Dual Purpose Use Winch

Suitable for both entry and retrieval, making it an all-in-one solution for space & rescue operations.
