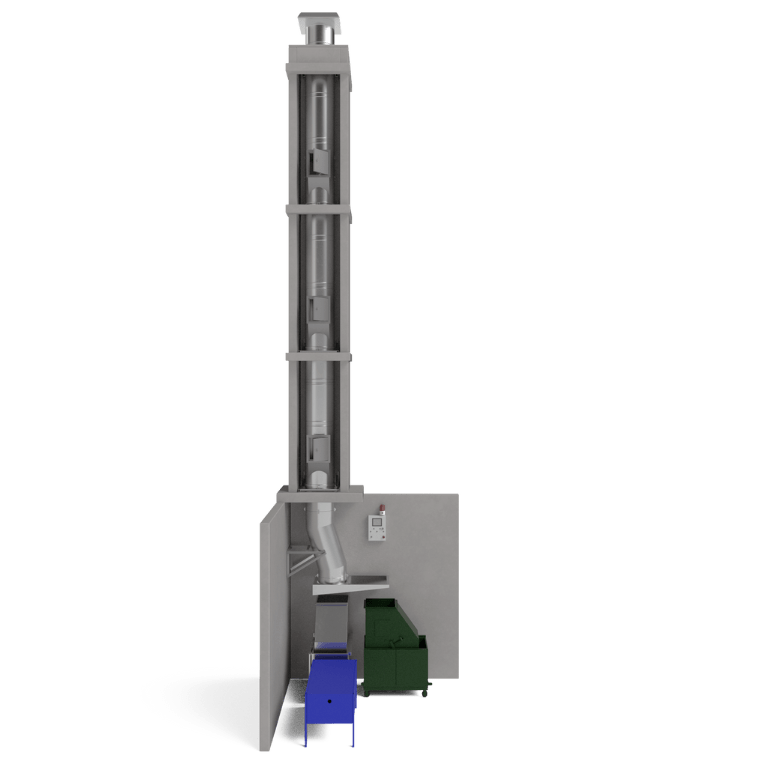

Garbage Chute system offers an efficient and safe way to manage waste in multi-story buildings, ensuring cleanliness and convenience.
VENTILLATION
The purpose of a vent is to dissipate odors, as well as to dissipate hot gases in the event of a fire within the chute. NFPA codes require a full diameter vent, penetrating and extending 3′ above the roof.
REGULAR CHUTE
The standard chute extends from the garbage collection room to the top floor, where the highest intake is located. The tubes are continuously TIG welded, ensuring a watertight system without any bolts, rivets, or other projections inside the chute.
COMPACTOR
Solid waste in your building has been brought down to street level with a dedicated waste chute and the collected to the compactor.

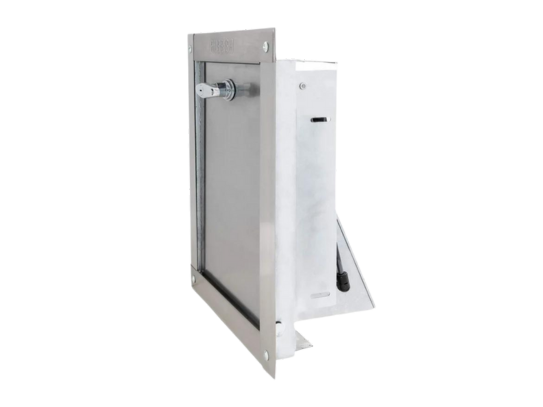

The doors are crafted from a solid, mono block stainless steel surface and feature specially designed gas pistons for easier and safer operation. Electromagnetic interlocking with LED indicator lamps ensures that only one user can operate the chute at a time, and all doors automatically lock during maintenance.
ACCESS DOOR
The Access Door is located above the top intake of the chute, allows access to the valves that operate the flushing spray head and/or sanitizing unit.
he offset design allows for flexibility in routing the chute around structural elements, ensuring optimal space utilization. Built with robust materials and precise engineering, these chutes offer reliable performance and seamless integration with building layouts, enhancing both functionality and safety.
DISCHARGE DOOR
Installed on the bottom of the chute, and held open by a 165°F (74°C) fusible link (UL listed). It will cut off and close the chute once fire happened in the garbage collection room and the link are melted when the ambient temperature of a fire reaches 165 °F.
SUPPORT BRACKET
Chute support frames are used for supporting the system on each floor. Chute support frames are fixed around the chute and bolted to the structure and wall. The interior of the rings is covered with 3mm anti vibration rubber pad as a sound isolator and protects the chutes from corrosion.
CONTROL PANEL
The control panel, situated in the garbage collection room, is equipped with essential switches, relays, and indicator lights for operating chute accessories such as automatic sanitizing systems, exhaust fans, brushing units, and interlocking doors. Additionally, the control panel is integrated with the fire and smoke alarm system to automatically lock the chute in case of a fire.
The Garbage Chute provides a safe and effective method for managing waste disposal from elevated areas, ensuring a clean and hazard-free environment on construction sites and multi-story buildings.
